Home » Vacuum unit AID.2.09.100, 170 l/min, 220V

The product image and color may differ from those shown in the photo.

Larta 1

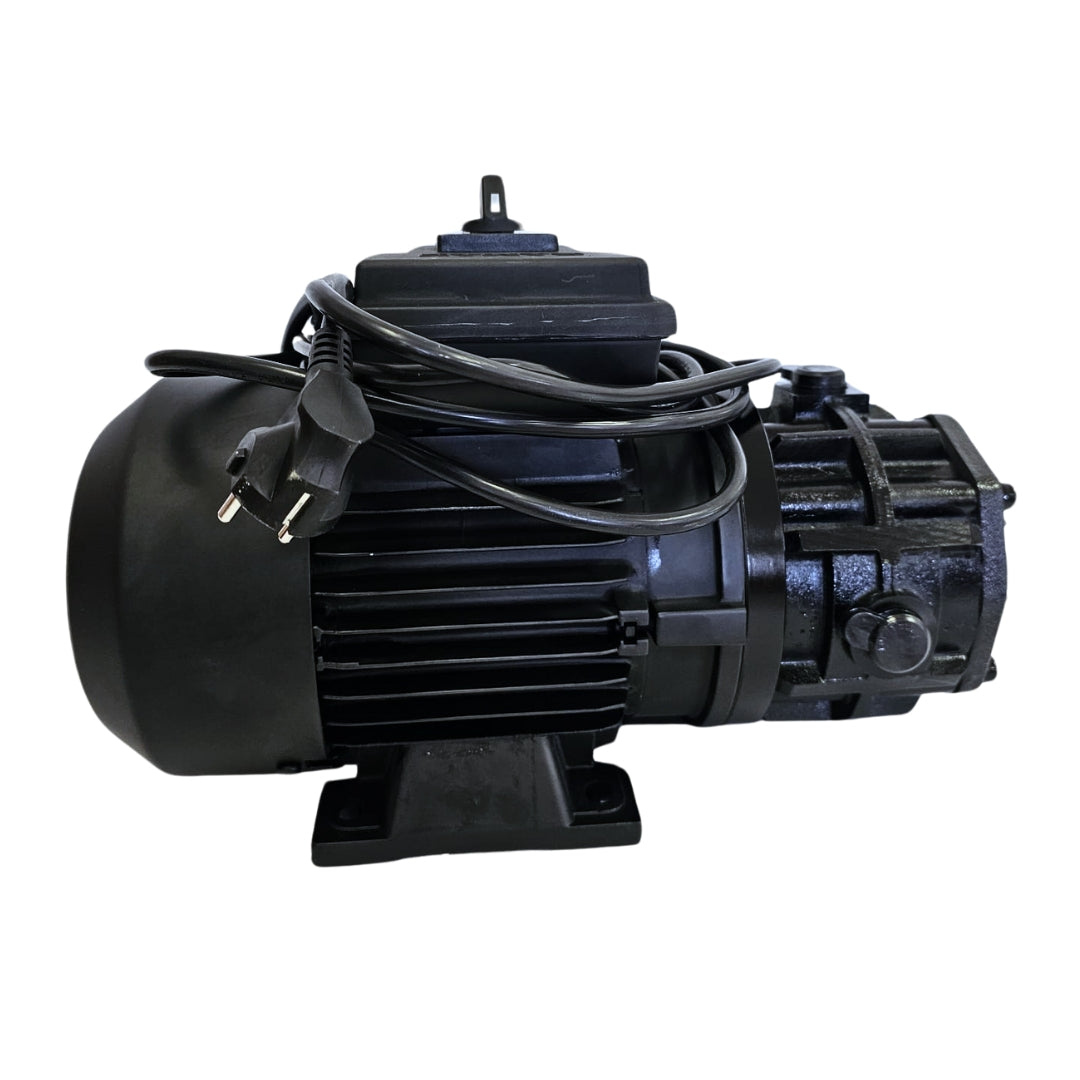

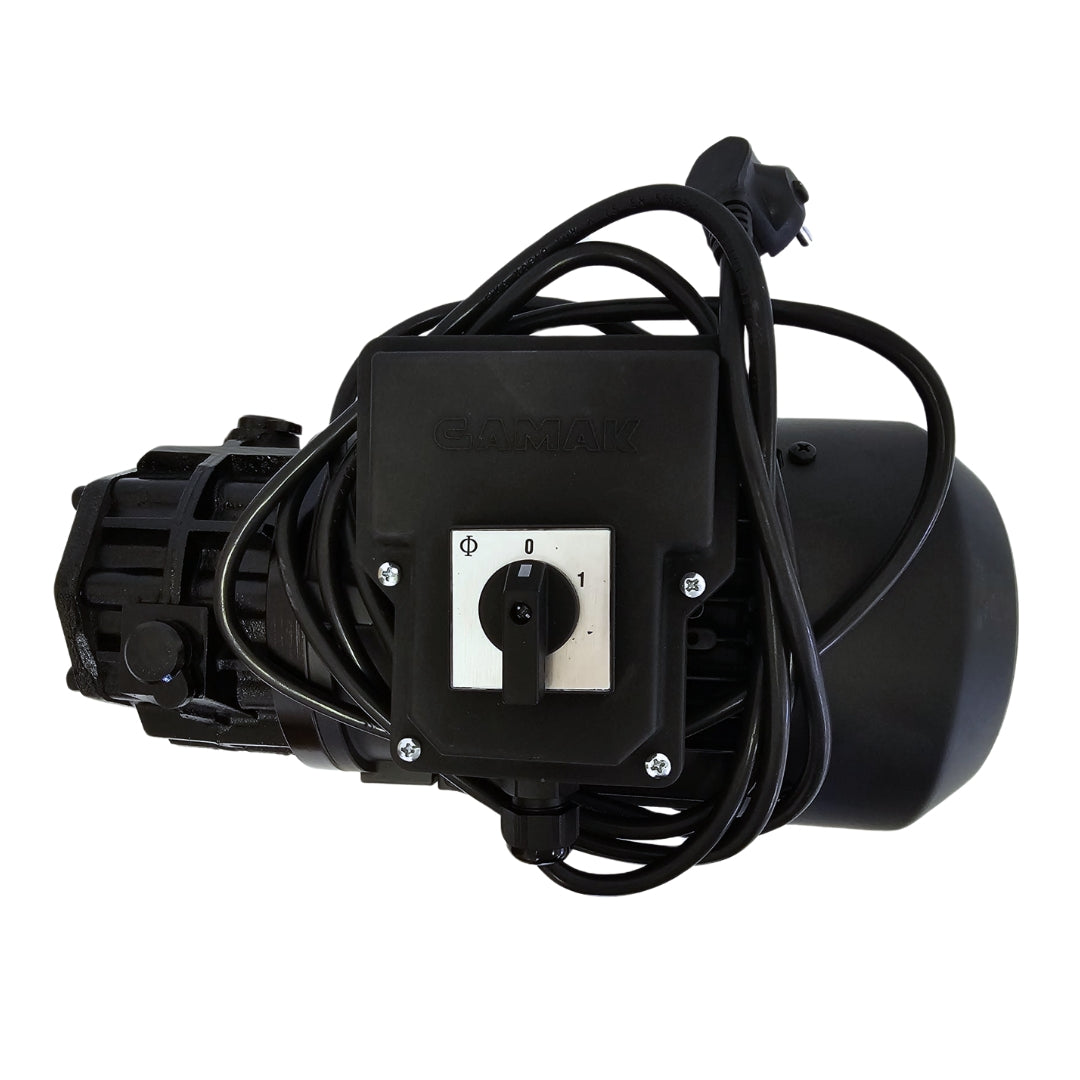

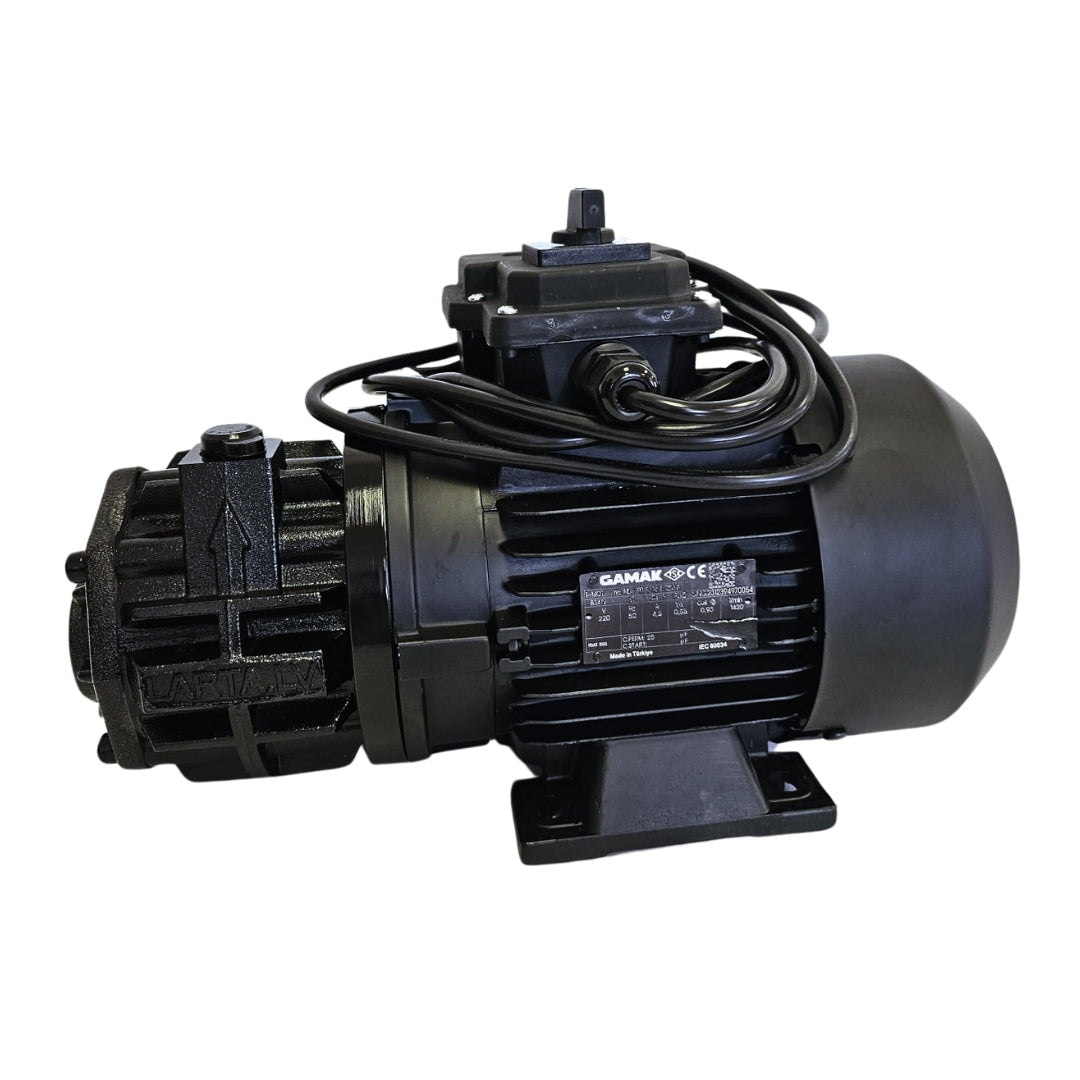

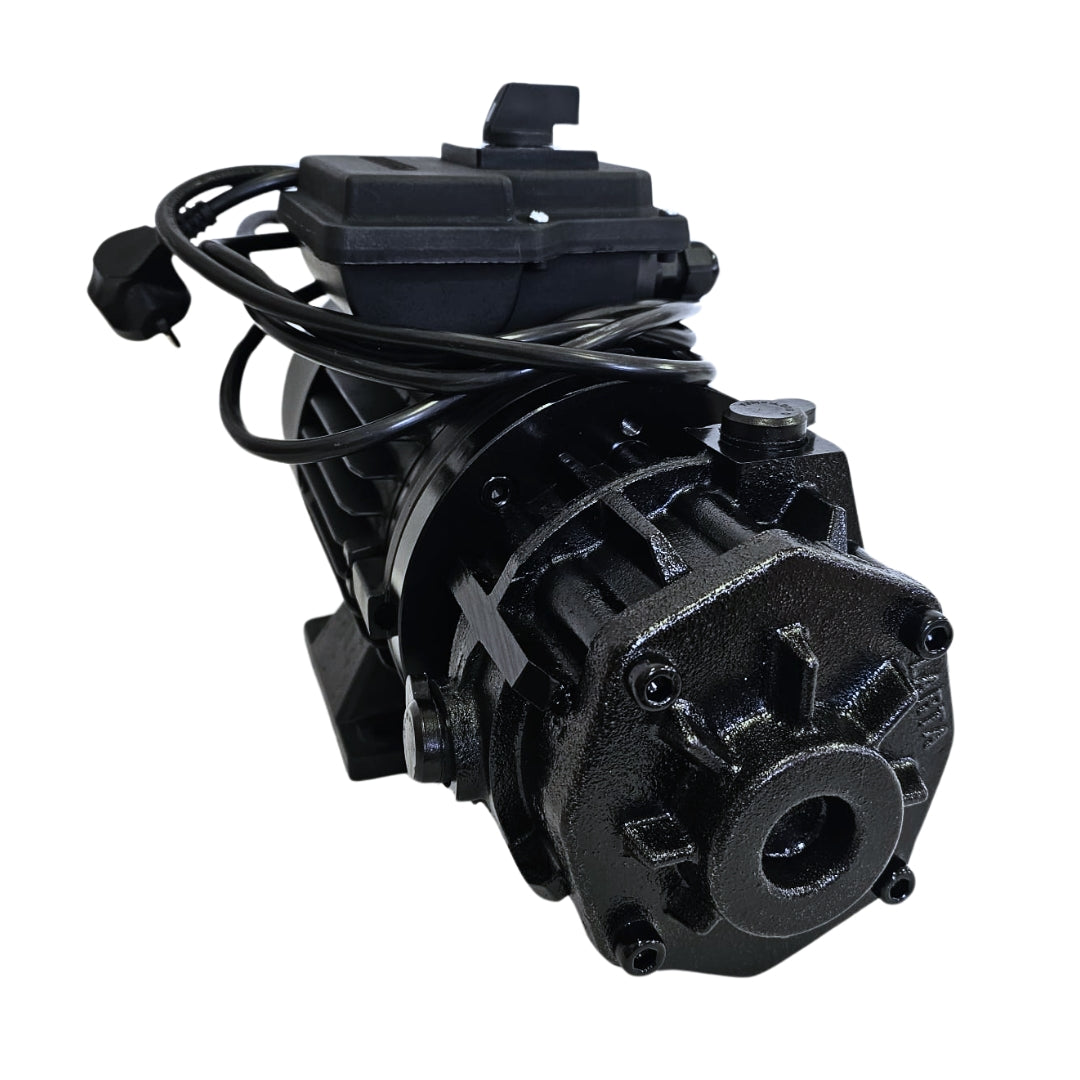

Vacuum unit AID.2.09.100, 170 l/min, 220V

SKU: 4200640
€444,00 with VAT
Only 2 left
Almost sold out
Type
Pickup at the parcel locker

* Weight ≤30 kg · 39×38×64 cm.

Any questions?

Contact us

Customer Support

Chat Email
Category
Milking Equipment, Vacuum Units, Vacuum Units & Pumps

Vacuum device AID.2.09.100. With the help of the motor, the pump rotor rotates in the bearings (the direction of rotation is indicated by an arrow on the pump housing), creating vacuum pressure in the vacuum tank.

By adjusting the vacuum regulator socket, set the vacuum pressure in the vacuum line to 50 ±1 kPa.

Technical specifications:

  • Vacuum device capacity: 170 l/min;
  • Electric motor power: 0.55 kW 220V;
  • Nominal vacuum pump capacity at vacuum 48 kPa: 10.2 m³/h;
  • Dry vacuum pump: oil-free.
  • Vendor Larta 1
  • SKU 4200640
