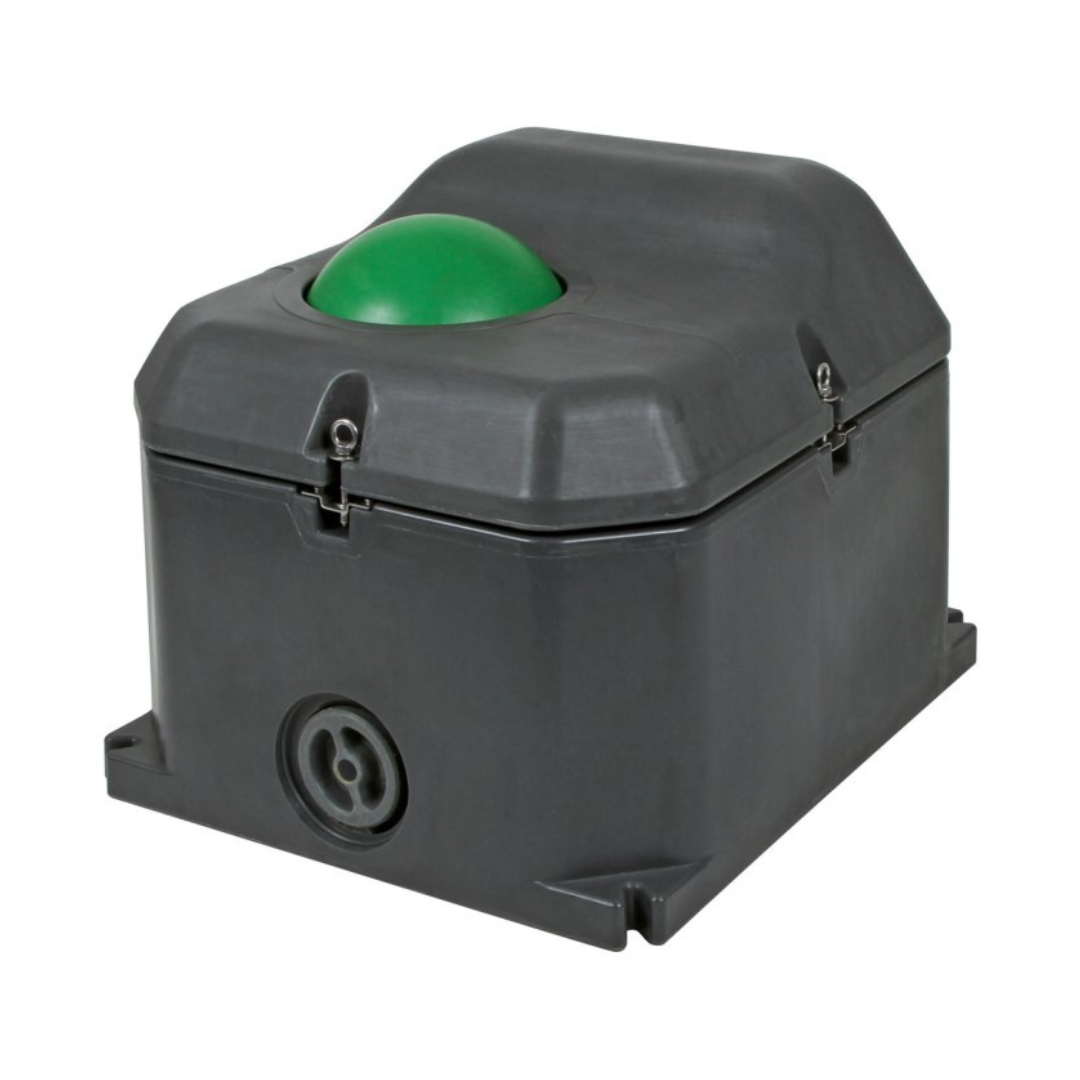

Thermal drinking bowl UNO 40 L

The Kerbl UNO thermal Drinking bowl is a durable and thermally insulated Drinking bowl for animals, designed to provide safe drinking water all year round. Thanks to the double-wall construction with high-quality thermal foam insulation, the Drinking bowl helps maintain water temperature and prevents icing even at low external temperatures, without electrical heating.

The closed design improves water hygiene, reduces contamination risk, and limits dirt entering the Drinking bowl. The Drinking bowl is designed for floor installation with water connection from below. The large capacity provides sufficient water for several animals simultaneously.

Application

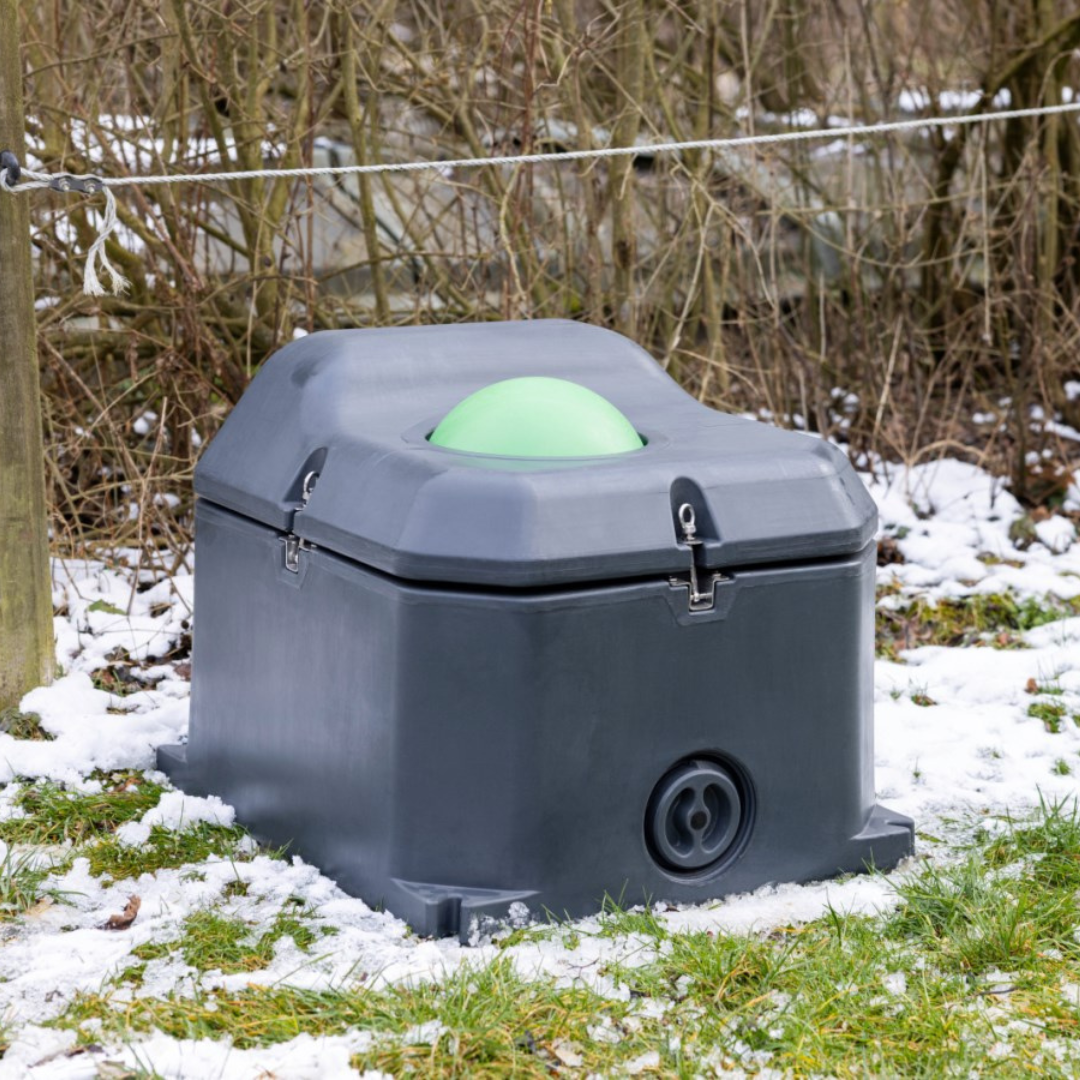

The UNO thermal Drinking bowl is suitable for use on farms and animal shelters where a reliable and durable solution for water supply is needed during the cold season.

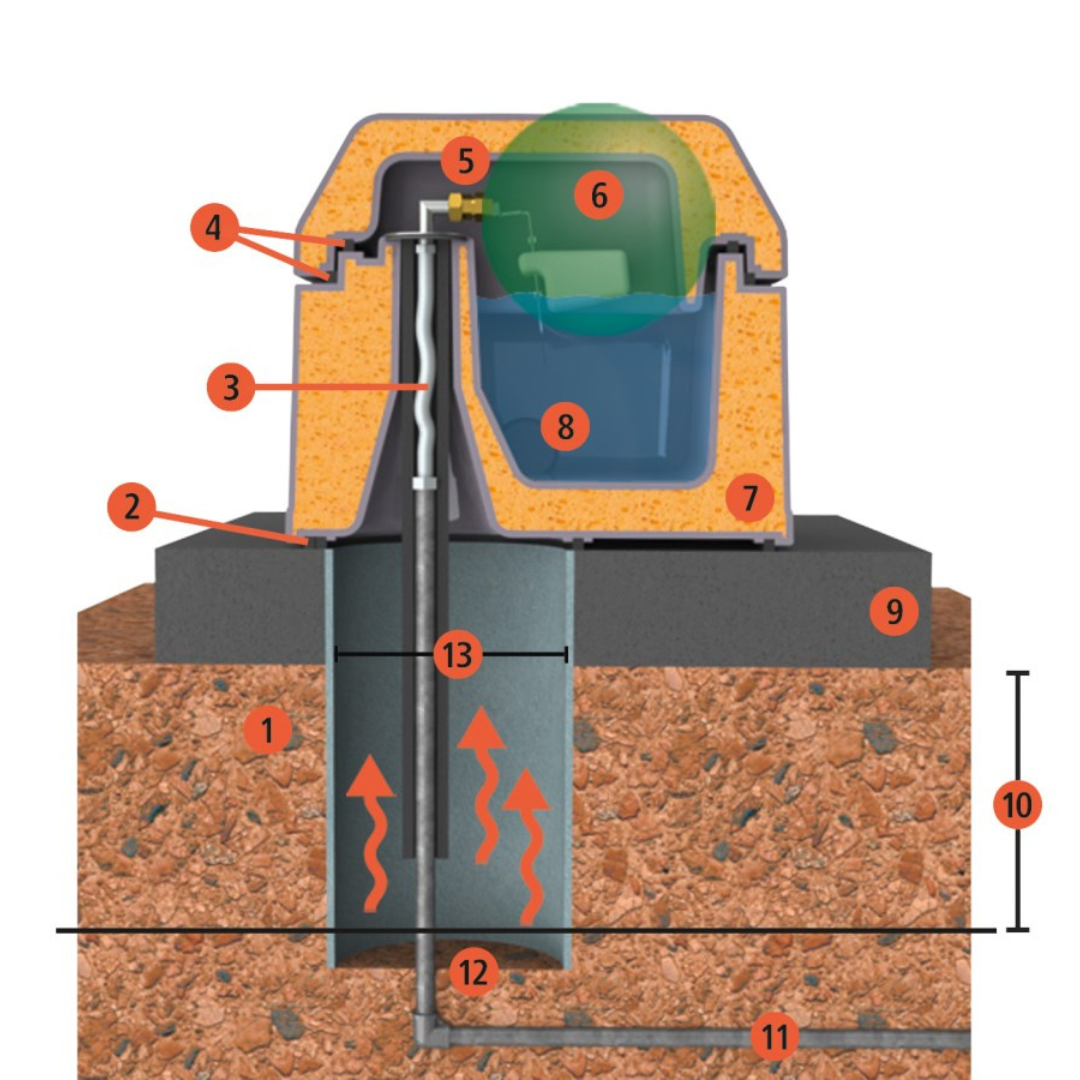

Construction scheme markings

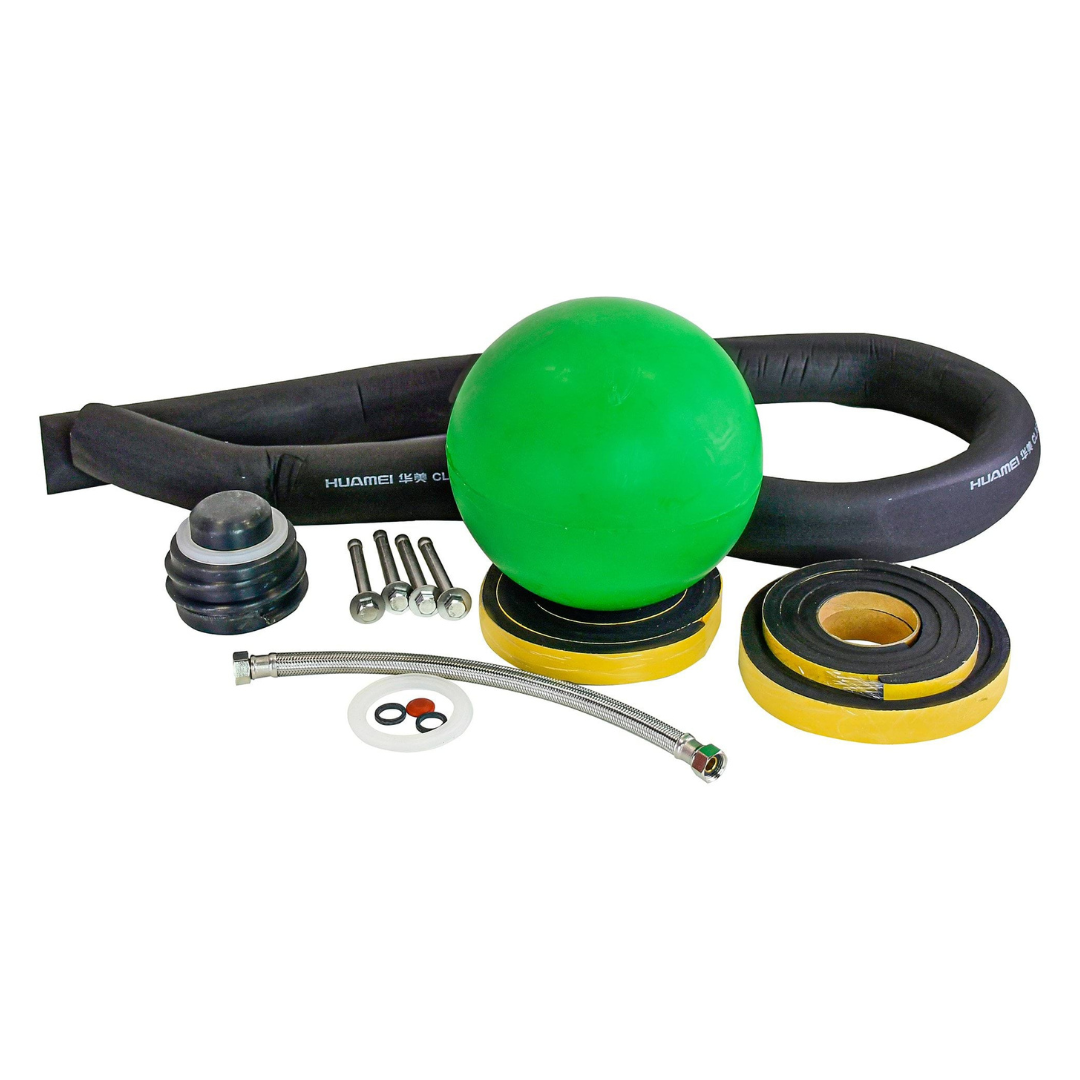

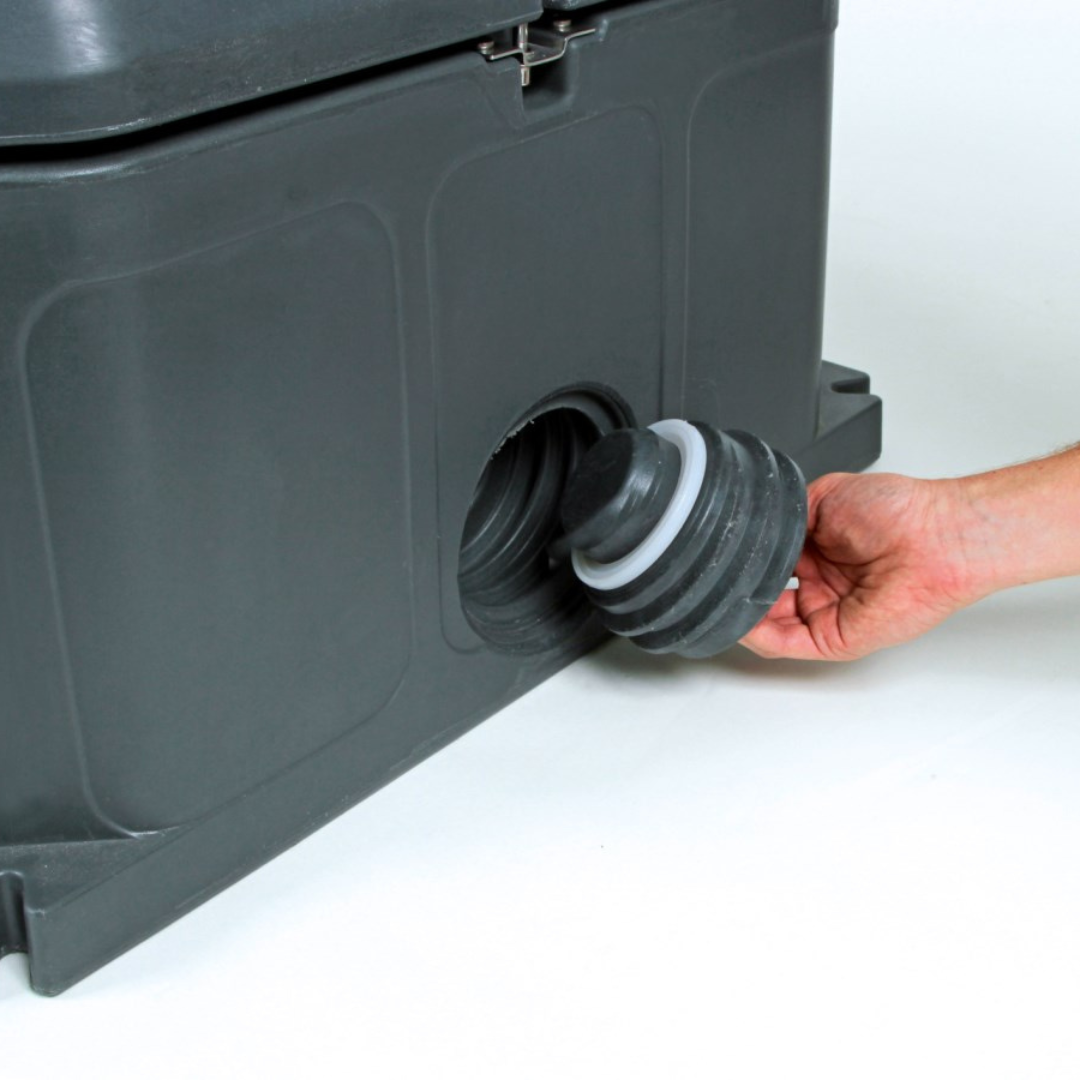

1. Pipe thermal insulation 2. Insulating seal between structure and base 3. Braided stainless steel hose 4. Double sealing system 5. Float-type valve 6. Spherical element (ball) 7. Thermal insulation foam layer 8. Quick drainage plug 9. Concrete base 10. Soil freezing depth: 0.8–2.0 m 11. Water supply connection 1/2″ 12. Direct contact with the ground, providing natural heat supply 13. Pipe with a minimum internal diameter of 30 cm

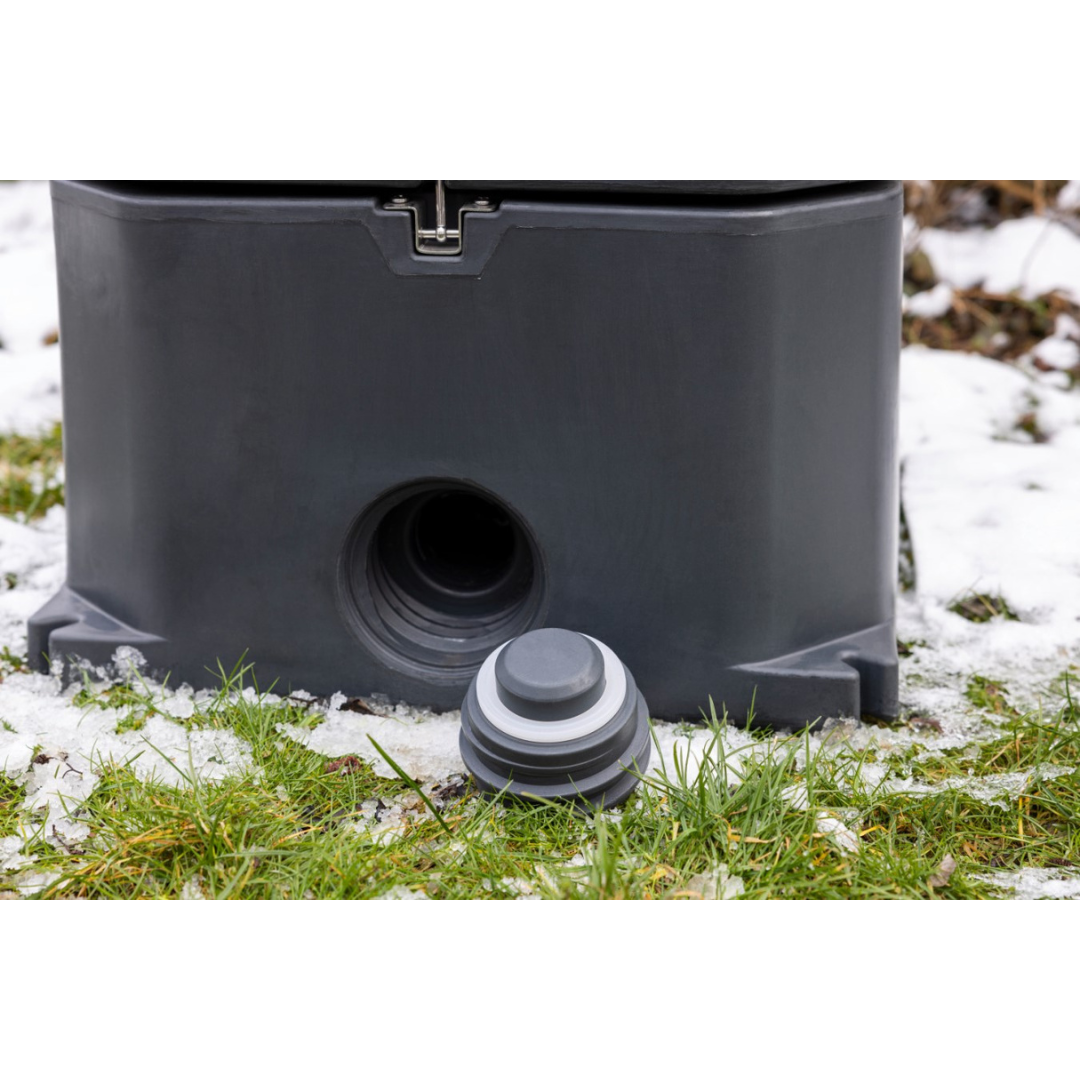

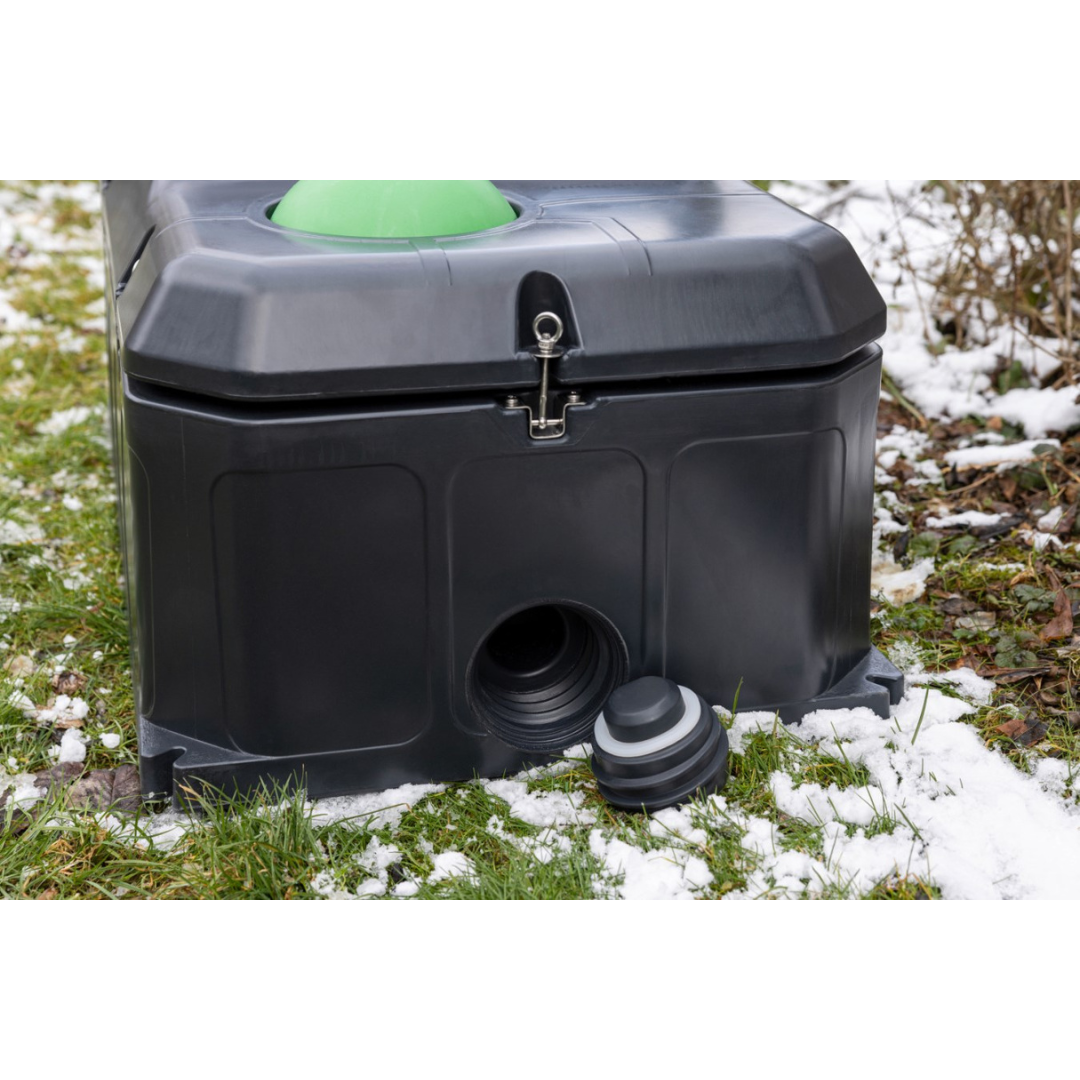

Technical specifications

Model: UNO

Type of Drinking bowl: Open, thermally insulated

Capacity: 40 L

Suitable for: up to ~15 animals (Cattle, horses, and other larger animals)

Insulation: Double wall with thermal foam filling

Protection: Down to approx. –30 °C (without electricity)

Water supply connection: Bottom G 1/2″

Flow rate: up to 24 L/min (at ~3 bar pressure)

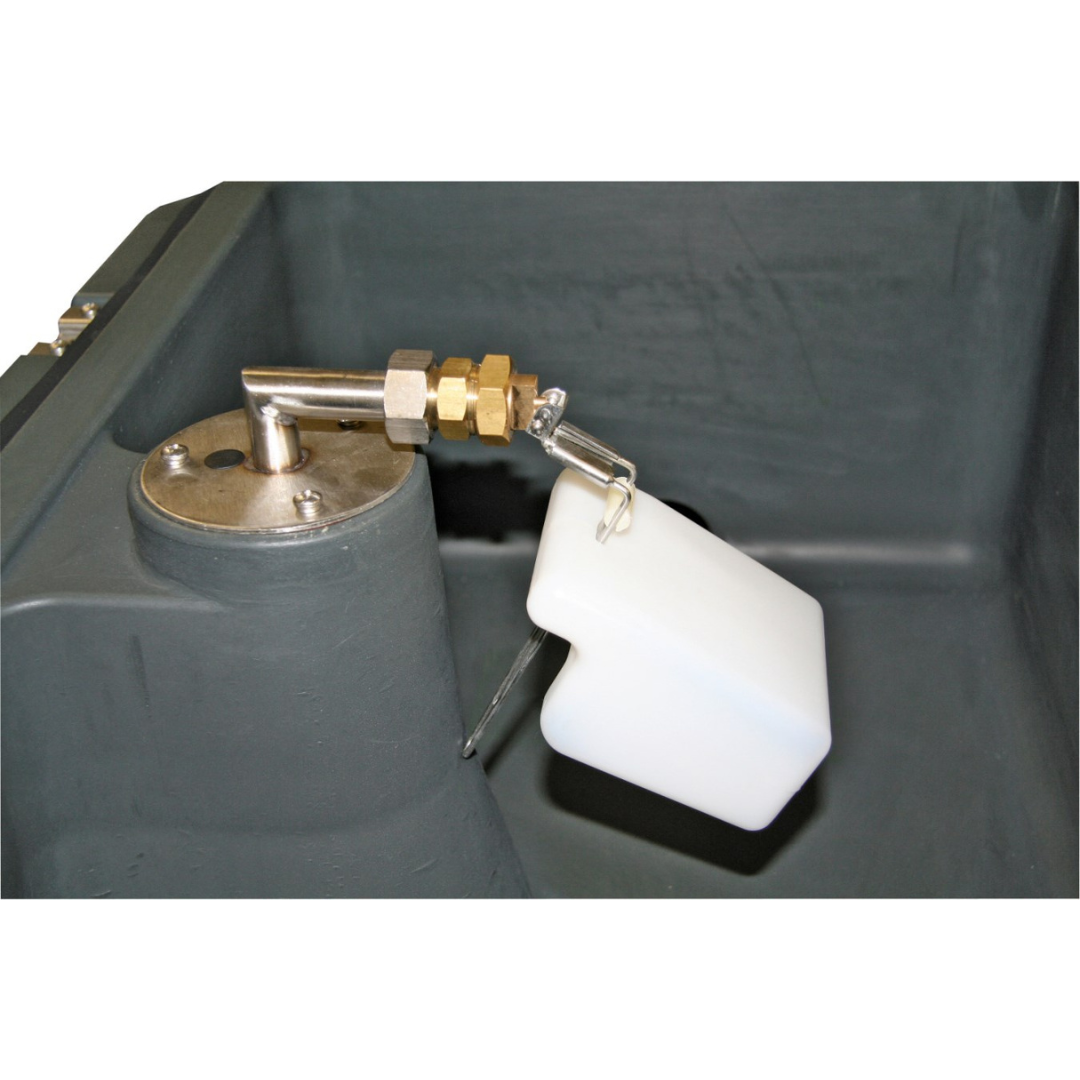

Water valve: Mechanical, protected in housing

Water refill: Automatic

Installation type: Floor-mounted (fixable)

Usage environment: Outdoor and indoor

Material: Impact-resistant plastic

UV resistance: Yes

Color: Green

Dimensions (W × D × H): 60 x 70 x 52.5 cm

Weight: 28 kg
